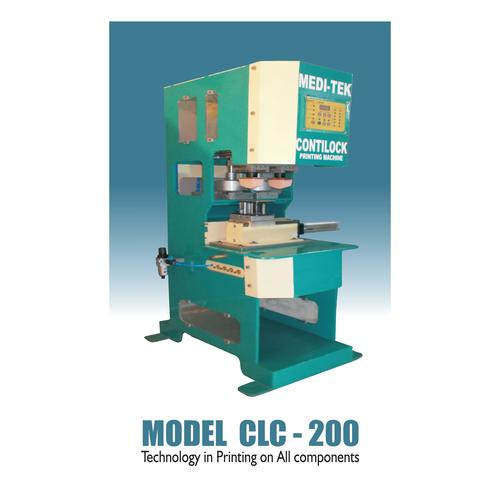

Expiry Date Printing Machine

Expiry Date Printing Machine
Expiry Date Printing Machine
Product Code : Meditek4
Brand Name : Meditek
Product Description

Customers can avail from us a upgraded Expiry Date Printing Machine for printing their products. Demanded in medical, chemical, electronic & electrical and other industries, it is suitable for printing on household items, crockery, electronic items and many more. High grade components and updated technology are incorporated to design and manufacture this machines under the direction of processionals. Known of less maintenance cost, efficiency and durability, we offer this Expiry Date Printing Machine to clients competitive prices.

Specification:

Model

CLC - 200

Cup Size Dia (Ø)

Ø 90mm

Printing Area

Ø 80mm

Plate Size

210X100X10mm

No. of Colour

TWO

Technical Specification:

Specifications

CLC-200

Standard Cliche Plate Size

210x100x10mm

Maximum Printing Diameter

80mm

Printing Capacity

1000 Prints/Hours

Maximum Height of Product

80mm

Drives

Pneumatic

Printing Force

800 N at 6 Bar

Compressed Air Connection

5-6 Bar working pressure

Air Consumption Maximum

6.2Nm3/hr at 6 bar

Electronic Control System

With 10 Inputs 6 outputs each for peripheral units

With 4 Inputs 4 outputs for integration into production Lines

Pad Vertical Stroke

Max 100 mm Infinitely Adjustable

Speed Adjustment

Infinitely Adjustable via Pneumatic Choke

Dimensions

L-640mm, W-700mm, H-720mm

Weight

Variance
